| Quantity | Per piece |
|---|---|
| 4+ | € 15,7300 |
| 5+ | € 11,8164 |
| 10+ | € 10,7421 |
| 25+ | € 9,7655 |
| 50+ | € 8,8777 |
| 100+ | € 8,0707 |

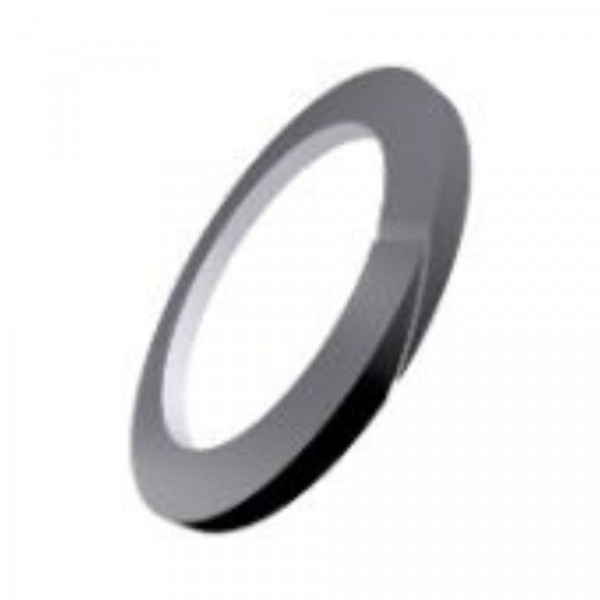

This PTFE O-Ring has a diameter of mm and is White in color. The hardness of this Back-up Ring 196.97x203.02x1.23 - PTFE - Split 45° - 59 Shore D - White - ORS277867 is 59 Shore D. Alternative names for the compound are , and it is commonly produced by . The O-Ring is typically used in and has an operating temperature range from -200 to 260. O-Rings 442056 are referred to as 277867 and have a DIN 3771 size of . This item is equivalent to and has an approval. The chemical name of this O-Ring is Polytetrafluoronthylene.
| Article number | 277867 |
| W (Snoer Dikte) | 3.03 |
| Export specifications | |
| Country of Origin | CN |
| Customs Code | 39269097 |
| General Specifications | |
| ID (Inner diameter) | 196.97 |
| OD (Outer Diameter) | 203.02 |
| H (Height) | 1.23 |
| Material | PTFE |
| Color | White |
| Compound Number | 169917301 |
| Dimensions | 196.97x203.02x1.23 |
| Hardness | 59 Shore D |
| Variant | Split 45° |
| Technical Specifications | |
| Chemical Name | Polytetrafluoronthylene |
| Specific Gravity | 2.16 |
| Temperature Max | 260 |
| Temperature Min | -200 |
| Also found under | |
| Back-up Rings | Back-up rings PTFE | |
All items marked with a * are required.
| Quantity | Per piece |
|---|---|
| 4+ | € 15,7300 |
| 5+ | € 11,8164 |
| 10+ | € 10,7421 |
| 25+ | € 9,7655 |
| 50+ | € 8,8777 |
| 100+ | € 8,0707 |
