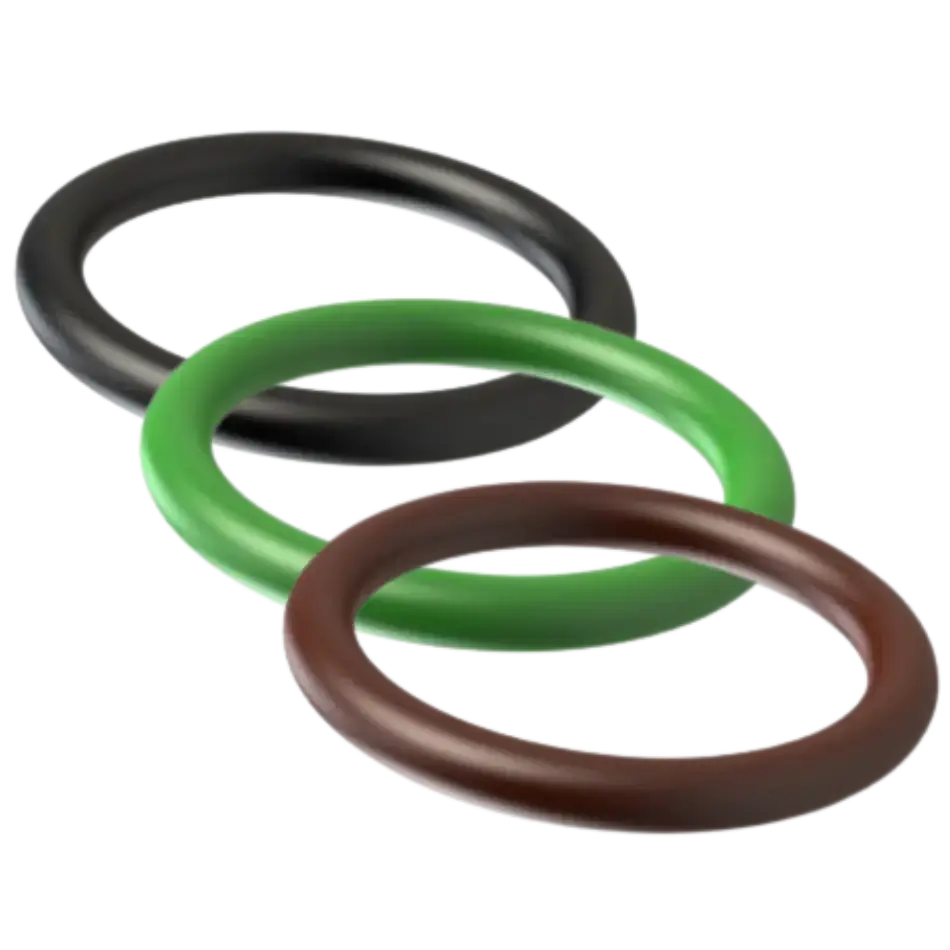

FKM - FPM - Viton® O-Rings

FKM O-Rings - 60 Shore A

FKM O-Rings - 60 Shore A
  • Temp. Range: -15℃ - +200℃
  • Specifications
    • General Purpose
    • Shockproof and resilient
    • OIls and Fats

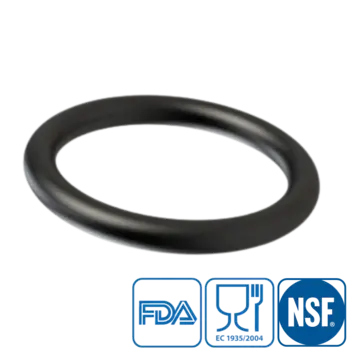

FKM O-Rings - 70 Shore A

FKM O-Rings - 70 Shore A
  • Temp. Range: -15℃ - +200℃
  • Specifications
    • General Purpose
    • Shockproof and resilient
    • OIls and Fats

FKM O-Rings - 70 Shore A - Premium

FKM O-Rings - 70 Shore A - Premium

FKM O-Rings - 75 Shore A

FKM O-Rings - 75 Shore A
  • Temp. Range: -15℃ - +200℃
  • Specifications
    • General Purpose
    • Shockproof and resilient
    • OIls and Fats

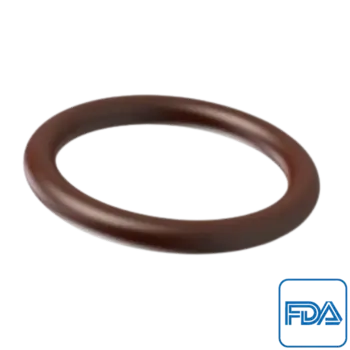

O-ring FKM - 75 Shore A - Conform FDA & EC1935/2004

O-ring FKM - 75 Shore A - Conform FDA & EC1935/2004

O-ring FKM - 75 Shore A - Brown - FDA - EC1935/2004 - 3A Sanitary

O-ring FKM - 75 Shore A - Brown - FDA - EC1935/2004 - 3A Sanitary

FKM O-Rings - 80 Shore A

FKM O-Rings - 80 Shore A
  • Temp. Range: -15℃ - +200℃
  • Specifications
    • General Purpose
    • Shockproof and resilient
    • OIls and Fats

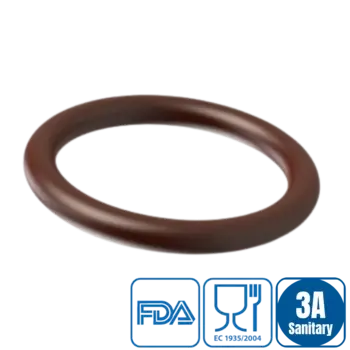

FKM O-Rings - 80 Shore A - FDA - EC1935/2004 - 3A-Sanitary

FKM O-Rings - 80 Shore A - FDA - EC1935/2004 - 3A-Sanitary

FKM O-Rings - 90 Shore A

FKM O-Rings - 90 Shore A
  • Temp. Range: -15℃ - +200℃
  • Specifications
    • General Purpose
    • Shockproof and resilient
    • OIls and Fats

FKM O-Rings - 90 Shore A - AED

FKM O-Rings - 90 Shore A - AED
  • Temp. Range: -27℃ - +230℃
  • Specifications
    • General Purpose
    • Shockproof and resilient
    • OIls and Fats
    • Anti Explosive Decompression

What is Fluorocarbon rubber (FKM)?

FKM - FPM - Viton O-Rings are sealing rings made of Fluorocarbon rubber. FKM is a synthetic rubber known for its excellent resistance to high temperatures, oils, fuels, chemicals, and ozone.

The key properties of FKM O-rings include their wide temperature range, typically from -20°C to 200°C (and sometimes higher depending on the composition), making them suitable for applications with extreme temperatures. FKM O-rings also offer excellent chemical resistance to oils, fats, fuels, solvents, acids, and bases, which is why they are widely used in automotive, aviation, chemical processing, and other industries where sealing under demanding conditions is crucial.

FKM - FPM - Viton O-Rings are available in various compositions and hardness levels to meet specific application requirements. They provide durable and reliable sealing properties in various critical applications.

FKM - Viton® O-rings

Viton is a well-known brand of Fluorocarbon rubber (FKM) O-rings, developed by The Chemours Company. FKM - FPM - Viton O-Rings falling under the Viton brand are highly valued for their excellent resistance to high temperatures, chemicals, oils, and fuels.

The Viton brand offers different FKM materials with specific properties tailored to various applications. FKM - FPM - Viton O-Rings are suitable for use in industrial and automotive environments where durable and reliable sealing is required under extreme conditions. They retain their elasticity and sealing performance over a broad temperature range and resist degradation from ozone and UV radiation.

The Viton brand is known for its quality, reliability, and performance in demanding industries such as chemical processing, aviation, and oil and gas.

Advantages of FKM O-rings

FKM (Fluorocarbon) O-rings offer various advantages that make them suitable for critical sealing applications. One key advantage is their excellent resistance to high temperatures, with a typical temperature range of -20°C to 200°C (and sometimes higher). This makes FKM - FPM - Viton O-Rings ideal for applications where extreme temperatures are involved.

Additionally, FKM O-rings exhibit excellent chemical resistance to oils, fats, fuels, solvents, acids, and bases. They maintain their sealing performance and elasticity in demanding environments and are suitable for use in automotive, aviation, chemical processing, and other industries.

FKM - FPM - Viton O-Rings are durable, have a long service life, and provide reliable sealing properties even under demanding conditions. Their versatility and wide applicability make FKM O-rings a popular choice for various critical sealing applications.

Applications of Fluorocarbon rubber

FKM (Fluorocarbon) O-rings are widely used in various industries due to their excellent properties. They are commonly used in automotive applications, including engines, transmissions, fuel systems, and air conditioning compressors, due to their resistance to oils, fuels, and high temperatures.

Additionally, FKM - FPM - Viton O-Rings are used in the aviation industry for sealing fuel systems, hydraulic systems, and engines of aircraft due to their chemical resistance and reliability.

FKM O-rings are also used in chemical processing plants, oil refineries, pharmaceutical equipment, and pumps due to their resistance to a wide range of chemicals and aggressive media.

In summary, FKM - FPM - Viton O-Rings are versatile and deployed in critical applications where durable sealing and reliable performance under demanding conditions are required.

Disadvantages of FKM O-rings

Despite the many advantages, FKM (Fluorocarbon) O-rings have some disadvantages to consider. One major drawback is that FKM - FPM - Viton O-Rings are generally more expensive compared to some other types of rubber, such as NBR (Nitrile rubber). This can affect project costs, especially for large-scale applications.

If you are looking for NBR O-rings, please click here.

Additionally, FKM O-rings may be less suitable for certain applications where extreme compression or dynamic movements are required, as they are more susceptible to permanent deformation and reduced elasticity under such conditions.

Finally, FKM - FPM - Viton O-Rings have limited resistance to certain steam conditions and hot water vapors, which can restrict their range of applications in steam and hot water installations. It's important to evaluate the compatibility of FKM O-rings with specific environmental factors before application.
