O-ring Groove Dimensions

O-ring Groove Dimensions

O-ring Groove Design

When designing O-ring grooves, several important parameters should be taken into account to ensure a proper seal and optimal performance. The O-ring Groove Design should consider factors such as groove depth, width, and the amount of compression applied to the O-ring. Typically, rectangular grooves are preferred for most O-ring seals due to their simplicity and effectiveness. However, if the application requires it for technological reasons, the groove flanks can include bevels with an angle not exceeding 5 degrees. This modification can help with easier installation and improved retention of the O-ring, but it is crucial to ensure that the O-ring Groove Dimensions are precisely maintained. Selecting the correct O-ring Groove Size and adhering to the recommended O-ring Groove Dimensions will help minimize potential issues, such as extrusion or insufficient sealing pressure, thereby extending the lifespan of the seal and maintaining system integrity.

Surfaces

The correct surface roughness of the sealing surfaces is crucial for achieving good and efficient sealing performance. Surface quality directly affects how well the O-ring interacts with the sealing groove and can determine whether the seal is effective under various operating conditions. For dynamic seals, which are subject to continuous movement and friction, the surface finish requirements are higher compared to those for static seals. This is because even minor imperfections, such as scratches, cavities, or deep machining grooves, can significantly increase wear and compromise the seal’s longevity. All surfaces in the area of the seal must be carefully finished to ensure optimal contact with the O-ring and minimize potential leakage. Additionally, ensuring that the O-ring Groove Design is aligned with the surface quality and that the O-ring Groove Size is selected appropriately can help maintain the required O-ring Groove Dimensions for effective sealing. Maintaining high surface quality is especially important when precise O-ring Groove Dimensions are needed to prevent the O-ring from being damaged during operation.

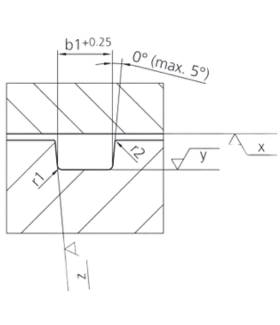

Technical drawing of a preferred O-ring groove design, showing detailed dimensions, radius specifications, and a maximum bevel angle of 5 degrees for optimal O-ring seating and sealing performance.
Preferred O-ring Groove Design
Surface Sealing Type
  Dynamic Static Static Pulsating Pressure
  Ra Rz Rmax Ra Rz Rmax Ra Rz Rmax
  [μm] [μm] [μm] [μm] [μm] [μm] [μm] [μm] [μm]
Sealing Surface (x) 0.4 1.2 1.6 1.6 6.3 10 0.8 1.6 3.2
Groove Base (y) 1.6 3.2 6.3 3.2 10 12.5 1.6 3.2 6.3
Groove Flanks (z) 3.2 6.2 10 6.3 12.5 16 3.2 6.3 10

Lead in Chambers

When installing O-rings, it is important to consider lead-in chamfers to facilitate smooth insertion and prevent potential damage. O-rings are typically designed with a slight oversize relative to the installation space, ensuring they are compressed when positioned between the machine parts to create a tight seal. Without the correct lead-in chamfers, there is a risk of damaging the O-ring, such as shearing or pinching, during installation. To avoid this, the components must include appropriate lead-in chamfers with an angle between 15° and 20°, which allows the O-ring to slide into the groove without catching or tearing. The length of these chamfers is determined by the O-ring cross-section and should correspond with the recommended O-ring Groove Dimensions. It is essential to incorporate these features into the O-ring Groove Design to ensure proper seating of the O-ring, maintain the desired O-ring Groove Size, and prevent long-term damage to the seal. Detailed specifications for chamfer length based on O-ring cross-section are typically provided in groove dimension tables, which should be carefully followed to achieve the best sealing results.

Technical drawing illustrating lead-in chamfers for O-ring installation, showing 20-degree chamfer angles with detailed dimensions to prevent O-ring damage and ensure smooth insertion into the groove.
Lead-In Chambers Schematics

Gap Dimensions

The gap dimension between the sealed machine parts should be as small as possible, depending on the specific requirements of the application. If the gap is too wide, a phenomenon known as gap extrusion may occur. This happens when the O-ring material is forced into the gap on the side opposite to the applied pressure, leading to severe damage or even complete destruction of the O-ring. To prevent this issue, it is essential to select the correct O-ring Groove Dimensions and ensure that the gap width falls within the permissible limits for the chosen material. For most materials, a specific maximum gap width (g) is recommended, as shown in the table below, and these values are valid for temperatures up to 70°C. It is also important to note that for silicone O-rings, the recommended gap size should be halved due to their lower resistance to extrusion. Careful consideration of the O-ring Groove Design and the O-ring Groove Size will help ensure optimal performance and prevent premature seal failure caused by gap extrusion.

Type of Sealing Pressure [bar] Hardness
    70 Shore A 80 Shore A 90 Shore A
Static Sealing < 63 0.2 0.25 0.3
  63 - 100 0.1 0.2 0.25
  100 - 160 0.5 0.1 0.2
  160 - 250  - 0.05 0.14
  250 - 350  - - 0.05
Dynamic Sealing < 30 0.2 0.25 0.3
  30 - 63 0.1 0.15 0.2
  63 - 80  - 0.1 0.15
  80 - 100 - - 0.1
O-ring Groove Dimensions
Preferred Gap Dimensions

Where gaps are wider or operating pressures are higher, it is recommended to use back-up rings in conjunction with the O-ring. Back-up rings help prevent the O-ring from being forced into the gap, which can lead to extrusion and seal failure. By providing additional support, back-up rings help maintain the correct O-ring Groove Dimensions, ensuring that the O-ring stays securely in place under high-pressure conditions. Incorporating back-up rings into the O-ring Groove Design is especially beneficial for applications with fluctuating pressures or large gap tolerances. This ensures that the O-ring Groove Size remains effective and prevents premature damage to the O-ring, thereby enhancing overall sealing performance and durability.

Different Types of O-ring Grooves

There are various types of O-ring grooves designed to accommodate different sealing applications. For static sealing, common groove types include radial compression and axial compression grooves, as well as specialized shapes like trapezoidal and triangular grooves, which are ideal for maintaining a strong seal in stationary assemblies. Vacuum sealing grooves are specifically designed to prevent leakage in low-pressure environments. For dynamic sealing, radial compression grooves are used in both hydraulic and pneumatic applications, allowing the O-ring to maintain a reliable seal while accommodating motion and pressure changes. Each groove type serves a unique purpose, ensuring the O-ring performs optimally under specific operating conditions.

Static Sealing

A static seal is a type of seal where the O-ring is used between two components that do not have any relative movement to each other. This type of seal ensures that liquids or gases cannot escape in stationary applications, such as flanges, covers, or housings. Because there is no movement, the stress and wear on the O-ring are minimal, resulting in a long-lasting and reliable seal. Static seals are ideal for situations requiring a firm and permanent closure, such as in high or low-pressure systems

Static Sealing with Radial Compression

With this type of installation, the cross section of the O-ring is compressed in the radial direction to create an effective seal. The O-ring groove is typically provided on either the inner or outer component part, depending on the specific application requirements. Proper O-ring Groove Design is crucial for ensuring optimal compression and maintaining the seal’s integrity. The O-ring Groove Dimensions must be carefully calculated to prevent excessive compression, which can lead to premature wear or even damage to the O-ring itself. On the other hand, if the O-ring Groove Size is too large, it may not provide adequate sealing force, causing potential leakage. Therefore, achieving the correct O-ring Groove Dimensions is essential for the O-ring to function reliably under varying pressure and temperature conditions.

Technical drawing of a static inside sealing O-ring groove with radial compression, showing detailed dimensions and groove geometry for optimal sealing performance in cylindrical applications.
Static Inside Sealing with Radial Compression

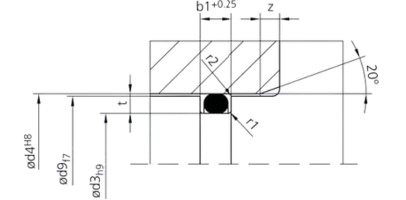

Technical drawing of a static outside sealing O-ring groove with radial compression, illustrating groove dimensions, angles, and geometry for effective sealing in external cylindrical applications.
Static Outside Sealing with Radial Compression

Static Sealing with Axial Compression

With this type of installation, the cross section of the O-ring is compressed in the axial direction, ensuring a proper seal between two surfaces. If the pressure acts from the inside, the O-ring should make contact at the outer diameter of the groove, and the O-ring Groove Dimensions should allow for slight compression of about 1% to a maximum of 3%. This ensures that the O-ring maintains enough force to seal against the pressure without being overly compressed. Conversely, if the pressure acts from the outside, the O-ring should make contact at the inner diameter of the groove and be slightly stretched, up to a maximum of 6%, to accommodate the external pressure. Proper O-ring Groove Design and accurately calculated O-ring Groove Size are critical for achieving the right balance between compression and stretch. By ensuring correct O-ring Groove Dimensions, the seal will perform reliably and maintain its effectiveness over time, even under varying pressure conditions.

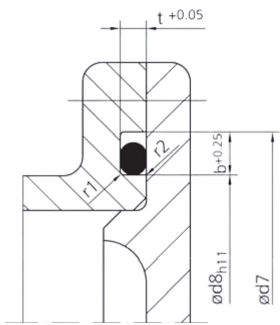

Technical drawing of a static inside sealing O-ring groove with axial pressure, illustrating groove dimensions and design specifications for achieving an effective axial seal in internal applications.
Static Inside Sealing with Axial Compression

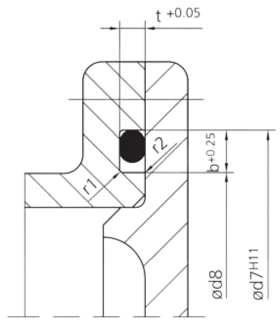

Technical drawing of a static outside sealing O-ring groove with axial pressure, displaying detailed dimensions and groove geometry for optimal sealing performance in external applications under axial load.
Static Outside Sealing with Axial Compression

Static Sealing with Trapezoidal Groove

The special geometry of the trapezoidal groove, while more complex and costly to manufacture, provides significant benefits in certain applications. Due to its unique shape, the O-ring is securely held in place, making it impossible for the O-ring to fall out after installation, even when subjected to vibrations or movement. This feature makes the trapezoidal groove particularly advantageous for overhead installations or in machine parts that open and close regularly. In these scenarios, the stability of the O-ring Groove Design is essential to maintain a consistent and reliable seal. Additionally, the precise O-ring Groove Dimensions ensure that the O-ring stays in position without shifting or deforming, which is crucial for achieving a proper seal. Choosing the right O-ring Groove Size and design helps minimize maintenance needs and reduces the risk of leaks or failures, especially in dynamic environments where stability is critical.

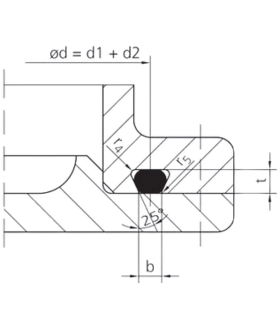

Technical drawing of a static sealing O-ring groove with a trapezoidal shape, showing detailed dimensions and design features for securing the O-ring in place and preventing it from falling out during installation or operation.
Static Sealing with Trapezoidal Groove

Static Sealing with a Triangular Groove

Typically, a rectangular groove is recommended for O-ring seals because of its simplicity and effectiveness in most sealing applications. However, in cases where covers or flanges must be sealed, specific design constraints or space limitations may necessitate the use of a triangular groove. Although less common, triangular grooves can provide a reliable seal when properly implemented. It is essential to maintain strict tolerances in these applications, as even minor deviations in the O-ring Groove Dimensions can impact the seal's performance and compromise its integrity. Ensuring that the O-ring Groove Design and the O-ring Groove Size are precise is crucial for achieving a safe and effective seal. Because the triangular groove has less room for error compared to standard groove shapes, it requires careful attention to detail during the design and manufacturing process. Therefore, choosing the right O-ring Groove Dimensions is vital for maintaining the seal's functionality and preventing potential issues in complex applications.

Technical drawing of a static sealing O-ring groove with a triangular shape, showing precise groove dimensions and a 45-degree angle for achieving an effective seal in applications where standard groove designs are not suitable.
Static Sealing with Triangular Groove

Static Vacuum Sealing

The recommendations for sealing in vacuum applications differ slightly from those used for standard sealing situations due to the unique challenges posed by low-pressure environments. In vacuum sealing, the surface quality of all sealing faces must be significantly higher to prevent any potential leaks. Maintaining the precise O-ring Groove Dimensions and ensuring compliance with the recommended installation dimensions is essential for achieving a higher preload on the O-ring, which results in the O-ring cross-section almost completely filling the groove. This optimal O-ring Groove Design helps create a longer diffusion path for the gas, reducing the chances of leakage through the elastomer. Additionally, using two O-rings in sequence and applying vacuum grease between them can further reduce the total leak rate, providing an extra layer of security. Choosing the appropriate O-ring Groove Size and materials is crucial, and fluoro rubber O-rings have proven to deliver excellent results in many vacuum sealing applications due to their resistance to gas permeation and long-term stability. Ensuring accurate O-ring Groove Dimensions and high-quality installation can significantly improve the performance and reliability of vacuum seals.

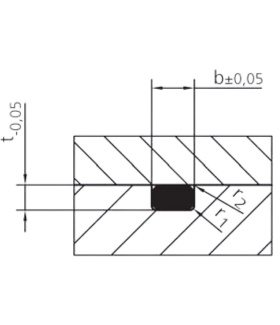

Technical drawing of a static vacuum sealing O-ring groove, depicting precise dimensions and groove geometry designed to minimize leakage and ensure a tight seal in vacuum applications.
Static Vacuum Sealing

Dynamic Sealing

If the sealed machine parts move relative to each other, such as in pistons or rotating shafts, the seal is considered a dynamic seal. In these applications, the O-ring must withstand continuous friction and movement, which makes it essential to use the correct O-ring Groove Design to minimize wear and ensure a long service life. Due to the constant motion, the compression of the O-ring cross-section is typically less than that in a static seal, as excessive compression can increase friction and lead to rapid O-ring degradation. It is crucial to carefully select the appropriate O-ring Groove Size and adhere to the recommended O-ring Groove Dimensions to achieve a reliable seal that can handle the dynamic forces at play. Proper installation and precise groove dimensions are necessary to balance the sealing effectiveness with the reduced frictional forces, ensuring optimal performance and preventing premature failure. By following these guidelines, the O-ring can effectively maintain its sealing function even in demanding dynamic applications.

Dynamic Sealing with Radial Compression in Hydraulic Systems

O-ring seals in hydraulic systems are commonly used for applications involving reciprocating movements, and sometimes even helical movements. These seals are particularly advantageous when installation space is limited, as their compact O-ring Groove Design allows them to provide effective sealing in small spaces. When the application requires higher performance, such as improved sealing capability or reduced friction, it may be necessary to consider using specialized piston or rod seals instead of standard O-rings. Selecting the appropriate O-ring Groove Size and adhering to precise O-ring Groove Dimensions is essential to ensure optimal performance and reliability in hydraulic systems. Due to the high-pressure environment in hydraulic applications, maintaining the correct O-ring Groove Dimensions helps prevent issues such as extrusion, excessive wear, or leakage. By choosing the right groove design and dimensions, the O-ring can withstand the demanding conditions of dynamic hydraulic sealing and maintain a secure seal over an extended period.

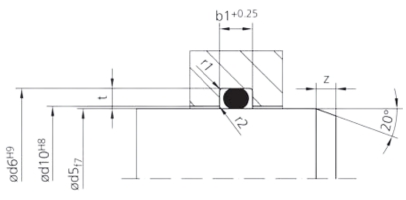

Technical drawing of a dynamic hydraulic inside sealing O-ring groove with radial compression, showing detailed dimensions and groove geometry for effective sealing in internal hydraulic applications under movement and pressure.
Dynamic Hydraulic Inside Sealing with Radial Compression
Technical drawing of a dynamic hydraulic outside sealing O-ring groove with radial compression, illustrating precise dimensions and design features for reliable sealing in external hydraulic applications with radial movement.
Dynamic Hydraulic Outside Sealing with Radial Compression

Dynamic Sealing with Radial Compression in Pneumatic Systems

O-ring seals in pneumatic systems are primarily used for reciprocating movements, such as those found in pistons and valves. Due to the lower pressures typically present in pneumatic applications compared to hydraulic systems, the compression of the O-ring cross-section is designed to be slightly less. This reduced compression is necessary to minimize friction and ensure smooth movement while maintaining an effective seal. Using the correct O-ring Groove Design is crucial to achieving this balance, as too much compression can increase wear and tear on the O-ring, while too little can result in inadequate sealing. Selecting the appropriate O-ring Groove Size and maintaining precise O-ring Groove Dimensions are key to ensuring the O-ring performs reliably in these applications. Properly calculated O-ring Groove Dimensions also help reduce energy consumption by minimizing resistance during movement, which is particularly important in pneumatic systems where efficiency is a priority.

Technical drawing of a dynamic pneumatic inside sealing O-ring groove with radial compression, showing precise dimensions and design specifications for effective sealing in internal pneumatic applications involving reciprocating movements.
Dynamic Pneumatic Inside Sealing with Radial Compression

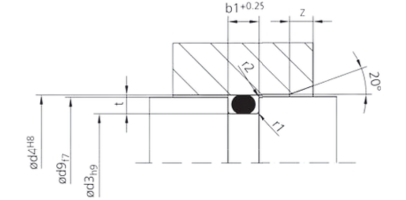

Technical drawing of a dynamic pneumatic outside sealing O-ring groove with radial compression, illustrating detailed groove dimensions and geometry for reliable sealing in external pneumatic applications with radial motion.
Dynamic Pneumatic Outside Sealing with Radial Compression
