| Quantity | Per piece |
|---|---|
| 1+ | € 51,8400 |
| 25+ | € 51,8400 |
| 50+ | € 49,3800 |
| 100+ | € 43,8800 |
| 250+ | € 41,0200 |
| 500+ | € 38,1600 |
| 1000+ | € 33,0600 |
| 2500+ | € 28,1600 |

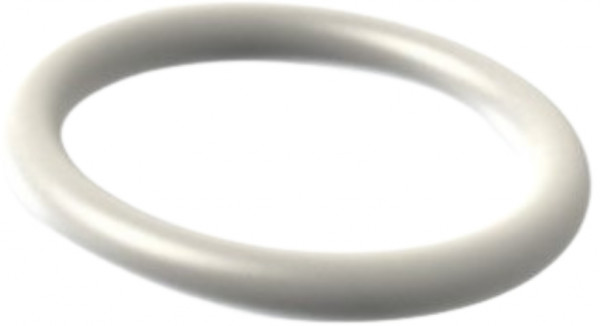

This FFKM - FFPM O-Ring has a diameter of mm and is White in color. The hardness of this O-ring 12x3.05 - FFKM - FFPM - F707W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 70 Shore A - White - ORS216344 is 70. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by . The O-Ring is typically used in and has an operating temperature range from -20 ºC to 270 ºC. O-Rings 554720 are referred to as 216344 and have a DIN 3771 size of . This item is equivalent to and has an FDA - EC1935/2004 - USP Class VI - 3A Sanitary approval. The chemical name of this O-Ring is Perfluoroelastomer.
| Article number | 216344 |
| Approximately equal to | |
| Precision Polymer Engineering Perlast® Equivilent | PPE Perlast ® G74S |
| Export specifications | |
| Country of Origin | IT |
| Customs Code | 40169300 |
| General Specifications | |
| Material | FFKM - FFPM |
| Hardness | 70 |
| Color | White |
| Approval | FDA - EC1935/2004 - USP Class VI - 3A Sanitary |
| Compound Number | F707W94 |
| CS (Cross Section) | 3.05 mm |
| Dimensions | 12x3.05 |
| ID (Inner diameter) | 12 mm |
| Seal type | O-ring |
| Other Specifications | |
| Alternative names | FFKM – FFPM |
| Chemical Name | Perfluoroelastomer |
| Product name | O-ring 12x3.05 FFKM – FFPM | F707W94 | FDA - EC1935/2004 - USP Class VI - 3A Sanitary |
| Technical Specifications | |
| Compression Set | 24 % |
| Specific Gravity | 2,41 (±0,03) g/cm3 |
| Temperature Max | 270 ºC |
| Temperature Min | -20 ºC |
| Tensile Strength | 13 MPa |
| Ultimate Elongation | 130 % |
| Also found under | |
| FFKM - FFPM O-rings | O-rings | |
