| Quantity | Per piece |
|---|---|
| 1+ | € 48,8400 |
| 25+ | € 48,8400 |
| 50+ | € 46,5400 |
| 100+ | € 41,7600 |
| 250+ | € 38,5000 |
| 500+ | € 36,2000 |
| 1000+ | € 31,4200 |
| 2500+ | € 26,6200 |

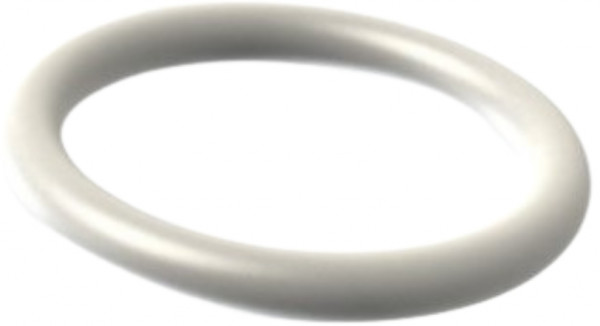

This FFKM - FFPM O-Ring has a diameter of mm and is White in color. The hardness of this O-ring 13.94x2.62 - FFKM - FFPM - F808W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 80 Shore A - White - ORS232823 is 80. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by . The O-Ring is typically used in and has an operating temperature range from -20 ºC to 270 ºC. O-Rings 931503 are referred to as 232823 and have a DIN 3771 size of . This item is equivalent to and has an FDA - EC1935/2004 - USP Class VI - 3A Sanitary approval. The chemical name of this O-Ring is Perfluoroelastomer.
| Article number | 232823 |
| Alternative Sizes | |
| AS568 Size Chart | AS568 113 |
| BS1806 Size Chart | BS1806 113 |
| Approximately equal to | |
| Greene Tweed Chemraz® Equivalent | Greene Tweed Chemraz ® SD517 & 513-529 |
| Export specifications | |
| Country of Origin | IT |
| Customs Code | 40169300 |
| General Specifications | |
| Material | FFKM - FFPM |
| Hardness | 80 |
| Color | White |
| Approval | FDA - EC1935/2004 - USP Class VI - 3A Sanitary |
| Compound Number | F808W94 |
| CS (Cross Section) | 2.62 mm |
| Dimensions | 13.94x2.62 |
| ID (Inner diameter) | 13.94 mm |
| Seal type | O-ring |
| Other Specifications | |
| Alternative names | FFKM – FFPM |
| Chemical Name | Perfluoroelastomer |
| Product name | O-ring 13.94x2.62 FFKM – FFPM | AS568 113 | F808W94 | FDA - EC1935/2004 - USP Class VI - 3A Sanitary |
| Technical Specifications | |
| Compression Set | 26 % |
| Specific Gravity | 2,43 (±0,03) g/cm3 |
| Temperature Max | 270 ºC |
| Temperature Min | -20 ºC |
| Tensile Strength | 13,5 MPa |
| Ultimate Elongation | 105 % |
| Also found under | |
| FFKM - FFPM O-rings | O-rings | |
All items marked with a * are required.
| Quantity | Per piece |
|---|---|
| 1+ | € 48,8400 |
| 25+ | € 48,8400 |
| 50+ | € 46,5400 |
| 100+ | € 41,7600 |
| 250+ | € 38,5000 |
| 500+ | € 36,2000 |
| 1000+ | € 31,4200 |
| 2500+ | € 26,6200 |
