| Stock | Delivery time |
|---|---|
| 19 | On workingdays before 12:00 ordered, shipped the same day |
| 186 | Shipped in 5 - 7 - Day(s) |
| Quantity | Per piece |
|---|---|
| 1+ | € 10,2700 |
| 10+ | € 10,2702 |
| 25+ | € 9,6085 |
| 50+ | € 8,9865 |
| 100+ | € 8,0527 |
| 250+ | € 7,6640 |
| 500+ | € 7,0410 |
| 1000+ | € 7,0485 |

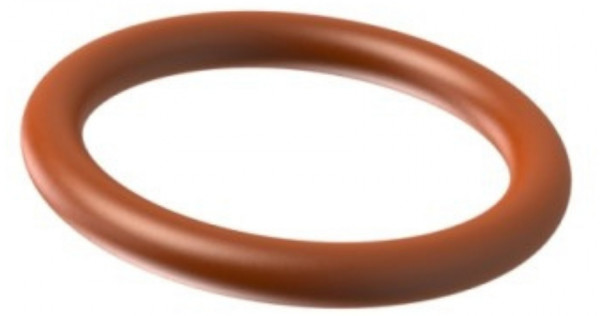

This Silicone - VMQ - MVQ O-Ring has a diameter of 169.3x5.7 mm and is Red in color. The hardness of this O-ring 169.3x5.7 - VMQ - MVQ - SIlicone - FDA - EC1935/2004 - 70 Shore A - Red - ORS18224 is 70. Alternative names for the compound are Silicone Rubber - PVMQ, and it is commonly produced by Eriks - Wacker - Eastern Seals - and BlueStar. The O-Ring is typically used in and has an operating temperature range from -50 ºC to 210 ºC. O-Rings 107201 are referred to as 18224 and have a DIN 3771 size of 169.3x5.7. This item is equivalent to and has an FDA - EC1935/2004 approval. The chemical name of this O-Ring is Vilnyl Methyl Silicone.
| In stock | Yes, 205 pcs |
| Article number | 18224 |
| Alternative Sizes | |
| DIN 3771 Size Chart | 169.3x5.7 |
| JIS B 2401 Size Chart | JIS G170 |
| Size in text | one hundred and sixty nine comma thirty by five comma seventy |
| SMS 1586 Size chart | 169.3 X 5.7 |
| Export specifications | |
| Country of Origin | VN |
| Customs Code | 40169300 |
| Food Contact & Sanitary Certifications | |
| EC1935/2004 | ✔ |
| FDA 21 CFR 177.2600 | ✔ |
| General Specifications | |
| Material | Silicone - VMQ - MVQ |
| Hardness | 70 |
| Color | Red |
| Approval | FDA - EC1935/2004 |
| Compound Number | 137019002 |
| CS (Cross Section) | 5.7 mm |
| Dimensions | 169.3x5.7 |
| ID (Inner diameter) | 169.3 mm |
| Seal type | O-ring |
| Material Compliance & Substance Regulations | |
| ADI-Free | ✔ |
| REACH-SVHC Conform | ✔ |
| RoHS Conform | ✔ |
| Other Specifications | |
| Alternative names | Silicone Rubber - PVMQ |
| Chemical Name | Vilnyl Methyl Silicone |
| Description 2 | O-ring VMQ - MVQ - Silicone 169.3x5.7 |
| Product name | O-ring 169.3x5.7 VMQ - Silicone |
| Trade names | Eriks - Wacker - Eastern Seals - and BlueStar |
| Technical Specifications | |
| Compression Set | 14 % |
| Specific Gravity | 1,38 (+/-0.03) g/cm3 |
| Temperature Max | 210 ºC |
| Temperature Min | -50 ºC |
| Tensile Strength | 7,9 MPa |
| Ultimate Elongation | 178 % |
| attachment |  Material Datasheet Material Datasheet |
| Also found under | |
| O-rings | VMQ - MVQ - Silicone O-rings | |
