| Quantity | Per piece |
|---|---|
| 1+ | € 870,2700 |
| 10+ | € 870,2673 |
| 25+ | € 870,2673 |
| 50+ | € 870,2673 |
| 100+ | € 870,2673 |

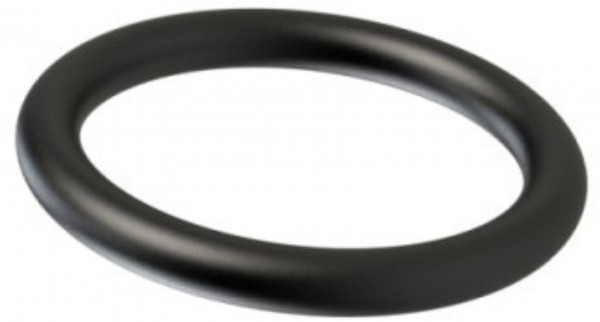

This FFKM - FFPM O-Ring has a diameter of 196.22x5.33 mm and is Black in color. The hardness of this O-ring 196.22x5.33 - FFKM - FFPM - F757Z75 - High Temp (>330°) - 75 Shore A - Black - ORS83938 is 75. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by . The O-Ring is typically used in and has an operating temperature range from -15 ºC to 340 ºC. O-Rings 596599 are referred to as 83938 and have a DIN 3771 size of 196.22x5.33. This item is equivalent to and has an High Temp (>330°) approval. The chemical name of this O-Ring is Perfluoroelastomer.
| Article number | 83938 |
| Alternative Sizes | |
| AS568 Size Chart | AS568 368 |
| BS1806 Size Chart | BS1806 368 |
| DIN 3771 Size Chart | 196.22x5.33 |
| Size in text | one hundred and ninety six comma twenty two by five comma thirty three |
| SMS 1586 Size chart | 196.22 X 5.33 |
| Export specifications | |
| Country of Origin | IT |
| Customs Code | 40169300 |
| General Specifications | |
| Material | FFKM - FFPM |
| Hardness | 75 |
| Color | Black |
| Approval | High Temp (>330°) |
| Compound Number | F757Z75 |
| CS (Cross Section) | 5.33 mm |
| Dimensions | 196.22x5.33 |
| ID (Inner diameter) | 196.22 mm |
| Seal type | O-ring |
| Other Specifications | |
| Alternative names | FFKM – FFPM |
| Chemical Name | Perfluoroelastomer |
| Description 2 | O-ring FFKM - FFPM 196.22x5.33 |
| Product name | O-ring 196.22x5.33 FFKM – FFPM | AS568 368 | F757Z75 | High Temp (>330°) |
| Technical Specifications | |
| Compression Set | 14 % |
| Specific Gravity | 2,00 (±0,03) g/cm3 |
| Temperature Max | 340 ºC |
| Temperature Min | -15 ºC |
| Tensile Strength | 10,3 MPa |
| Ultimate Elongation | 140 % |
| attachment |  Material Datasheet |
| Also found under | |
| FFKM - FFPM O-rings | O-rings | |
