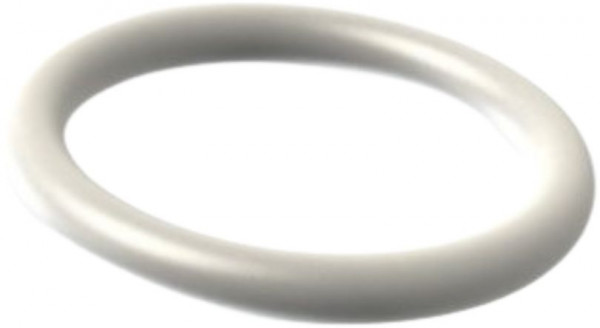

O-ring 21,92x2,95 - FFKM - FFPM - F808W95 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - High Temp (>300°C) - 80 Shore A - White - ORS91265

ID (Inner diameter) 21.92 mm
CS (Cross Section) 2.95 mm
Material FFKM - FFPM
Hardness 80 Shore A
Color White
Item no. 91265
Material FFKM - FFPM
Hardness 80 Shore A
Color White
AS568 Size Chart
Stock 0 sentiment_satisfied_alt
Need a coating for this O-Ring? Request a quotation here keyboard_arrow_down All specifications
€ 74,52 Ex. VAT / per piece
€ 74,52 Incl. VAT
Price per piece
This product has a minimum order quantity of 1 pieces.

Receive a quote and delivery time

iDeal
paypal
creditCard
Sofort
Billink
check Simplified online ordering
check Express worldwide delivery
check Large stock available
check Next day delivery
check Simplified online ordering
check Express worldwide delivery
check Large stock available
check Next day delivery
Quantity Per piece
1+ € 74,5200
10+ € 69,0954
25+ € 60,4200
50+ € 52,8162
100+ € 48,4842
Description

This FFKM - FFPM O-Ring has a diameter of 21.92x2.95 mm and is White in color. The hardness of this O-ring 21,92x2,95 - FFKM - FFPM - F808W95 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - High Temp (>300°C) - 80 Shore A - White - ORS91265 is 80 Shore A. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by . The O-Ring is typically used in and has an operating temperature range from -15 ºC to 300 ºC. O-Rings 669831 are referred to as 91265 and have a DIN 3771 size of 21.92x2.95. This item is equivalent to and has an FDA - EC1935/2004 - USP Class VI - 3A Sanitary - High Temp (>300°C) approval. The chemical name of this O-Ring is Perfluoroelastomer.

Article number 91265
Alternative Sizes
DIN 3771 Size Chart info 21.92x2.95
Size in texttwenty one comma ninety two by two comma ninety five
SMS 1586 Size chart21.92 X 2,95
Approximately equal to
Precision Polymer Engineering Perlast® EquivilentPPE Perlast ® G80H
Export specifications
Country of OriginIT
Customs Code info 40169300
General Specifications
MaterialFFKM - FFPM
Hardness info 80 Shore A
ColorWhite
ApprovalFDA - EC1935/2004 - USP Class VI - 3A Sanitary - High Temp (>300°C)
Compound NumberF808W95
CS (Cross Section) info 2.95 mm
Dimensions info 21,92x2,95
ID (Inner diameter) info 21.92 mm
Seal typeO-ring
Other Specifications
Alternative namesFFKM – FFPM
Chemical Name info Perfluoroelastomer
Description 2O-ring FFKM - FFPM 21.92x2.95
Product nameO-ring 21,92x2,95 FFKM – FFPM | F808W95 | FDA - EC1935/2004 - USP Class VI - 3A Sanitary - High Temp (>300°C)
Technical Specifications
Compression Set info 28 %
Specific Gravity info 2,55 (±0,03) g/cm3
Temperature Max info 300 ºC
Temperature Min info -15 ºC
Tensile Strength info 13,2 MPa
Ultimate Elongation info 100 %
attachmentpdf Material Datasheet
download Download/print specifications PDF
