| Stock | Delivery time |
|---|---|
| 16 | Shipped in 5 - 7 - Day(s) |
| Quantity | Per piece |
|---|---|
| 1+ | € 93,4100 |
| 10+ | € 93,4080 |
| 25+ | € 83,6000 |
| 50+ | € 99,1000 |
| 100+ | € 89,7800 |
| 250+ | € 77,5200 |
| 500+ | € 68,1800 |

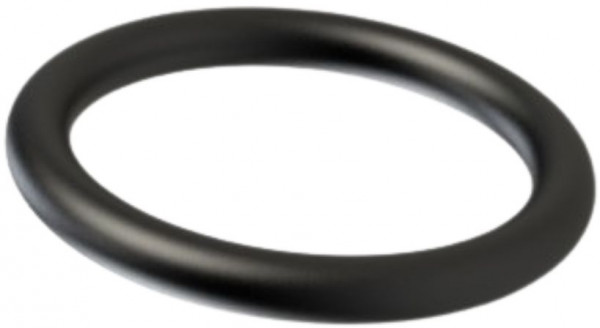

This FFKM - FFPM O-Ring has a diameter of 24.2 x 3 mm and is Black in color. The hardness of this O-ring 24.2x3 - FFKM - FFPM - F757Z75 - High Temp (>330°) - 75 Shore A - Black - ORS219982 is 75. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by . The O-Ring is typically used in and has an operating temperature range from -15 ºC to 340 ºC. O-Rings 593429 are referred to as 219982 and have a DIN 3771 size of 24.2 x 3. This item is equivalent to and has an High Temp (>330°) approval. The chemical name of this O-Ring is Perfluoroelastomer.
| In stock | Yes, 16 pcs |
| Article number | 219982 |
| Alternative Sizes | |
| DIN 3771 Size Chart | 24.2 x 3 |
| ISO 3601 Size Chart | 24.2x3 |
| SMS 1586 Size chart | 24.2 X 3 |
| Export specifications | |
| Country of Origin | IT |
| Customs Code | 40169300 |
| General Specifications | |
| Material | FFKM - FFPM |
| Hardness | 75 |
| Color | Black |
| Approval | High Temp (>330°) |
| Compound Number | F757Z75 |
| CS (Cross Section) | 3 mm |
| Dimensions | 24.2x3 |
| ID (Inner diameter) | 24.2 mm |
| Seal type | O-ring |
| Other Specifications | |
| Alternative names | FFKM – FFPM |
| Chemical Name | Perfluoroelastomer |
| Description 2 | O-ring FFKM - FFPM 24.15 x 3 |
| Product name | O-ring 24.2x3 FFKM – FFPM | F757Z75 | High Temp (>330°) |
| Technical Specifications | |
| Compression Set | 14 % |
| Specific Gravity | 2,00 (±0,03) g/cm3 |
| Temperature Max | 340 ºC |
| Temperature Min | -15 ºC |
| Tensile Strength | 10,3 MPa |
| Ultimate Elongation | 140 % |
| Also found under | |
| FFKM - FFPM O-rings | O-rings | |
