| Stock | Delivery time |
|---|---|
| 44 | Shipped in 5 - 7 - Day(s) |
| Quantity | Per piece |
|---|---|
| 1+ | € 70,5400 |
| 100+ | € 70,5400 |
| 250+ | € 61,6400 |
| 500+ | € 53,8400 |
| 1000+ | € 49,7600 |

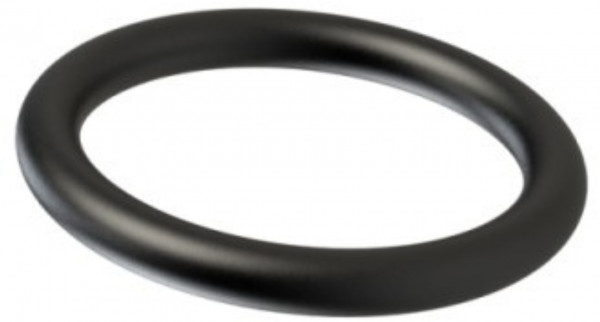

This FFKM - FFPM O-Ring has a diameter of 34.59x2.62 mm and is Black in color. The hardness of this O-ring 34.59x2.62 - FFKM - FFPM - F758Z96 - High Temperature (>330°C) - 75 Shore A - Black - ORS72683 is 75. Alternative names for the compound are FFKM - FFPM, and it is commonly produced by . The O-Ring is typically used in and has an operating temperature range from -15 ºC to 330 ºC. O-Rings 561849 are referred to as 72683 and have a DIN 3771 size of 34.59x2.62. This item is equivalent to and has an General Purpose (>330°C) approval. The chemical name of this O-Ring is Perfluoroelastomer.
| In stock | Yes, 44 pcs |
| Article number | 72683 |
| Alternative Sizes | |
| AS568 Size Chart | AS568 126 |
| BS1806 Size Chart | BS1806 126 |
| DIN 3771 Size Chart | 34.59x2.62 |
| JIS B 2401 Size Chart | JIS P35 |
| Size in text | thirty four comma fifty nine by two comma sixty two |
| SMS 1586 Size chart | 34.59 X 2.62 |
| Approximately equal to | |
| Freudenberg Simriz® Equivalent | Freudenberg Simriz ® 498 |
| Greene Tweed Chemraz® Equivalent | Greene Tweed Chemraz ® 615 |
| Precision Polymer Engineering Perlast® Equivilent | PPE Perlast ® G75B |
| Trelleborg Isolast® Equivalent | Trellebrog Isolast ® J8325 & Isolast ® J9876 |
| Export specifications | |
| Country of Origin | IT |
| Customs Code | 40169300 |
| General Specifications | |
| Material | FFKM - FFPM |
| Hardness | 75 |
| Color | Black |
| Approval | General Purpose (>330°C) |
| Compound Number | F758Z96 |
| CS (Cross Section) | 2.62 mm |
| Dimensions | 34.59x2.62 |
| ID (Inner diameter) | 34.59 mm |
| Seal type | O-ring |
| Other Specifications | |
| Alternative names | FFKM - FFPM |
| Chemical Name | Perfluoroelastomer |
| Description 2 | O-ring FFKM - FFPM 34.59x2.62 |
| Product name | O-ring 34.59x2.62 FFKM – FFPM | AS568 126 | F758Z96 | General Purpose - High Temp (>330°C) |
| Technical Specifications | |
| Compression Set | 19,5 % |
| Specific Gravity | 1,98 (±0,03) g/cm3 |
| Temperature Max | 330 ºC |
| Temperature Min | -15 ºC |
| Tensile Strength | 17,8 MPa |
| Ultimate Elongation | 152 % |
| attachment |  Material Datasheet |
| Also found under | |
| FFKM - FFPM O-rings | O-rings | |
