| Stock | Delivery time |
|---|---|
| 1 | On workingdays before 12:00 ordered, shipped the same day |
| 109 | Shipped in 5 - 7 - Day(s) |
| Quantity | Per piece |
|---|---|
| 1+ | € 21,2500 |
| 100+ | € 21,2500 |
| 250+ | € 18,9250 |
| 500+ | € 17,7250 |
| 1000+ | € 16,8500 |
| 2500+ | € 14,4500 |
| 5000+ | € 12,6500 |
| 10000+ | € 11,5250 |

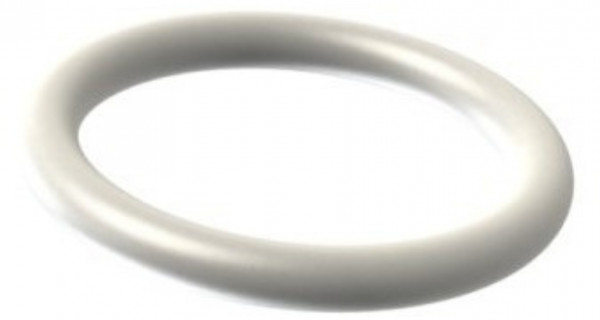

This FFKM - FFPM O-Ring has a diameter of 4.5x1.5 mm and is White in color. The hardness of this O-ring 4.5x1.5 - FFKM - FFPM - F707W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 70 Shore A - White - ORS69520 is 70. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by . The O-Ring is typically used in and has an operating temperature range from -20 ºC to 270 ºC. O-Rings 554286 are referred to as 69520 and have a DIN 3771 size of 4.5x1.5. This item is equivalent to and has an FDA - EC1935/2004 - USP Class VI - 3A Sanitary approval. The chemical name of this O-Ring is Perfluoroelastomer.
| In stock | Yes, 110 pcs |
| Article number | 69520 |
| Alternative Sizes | |
| DIN 3771 Size Chart | 4.5x1.5 |
| JIS B 2401 Size Chart | JIS S5 |
| Size in text | four comma fifty by one comma fifty |
| SMS 1586 Size chart | 4.5 x 1.5 |
| Approximately equal to | |
| Precision Polymer Engineering Perlast® Equivilent | PPE Perlast ® G74S |
| Export specifications | |
| Country of Origin | IT |
| Customs Code | 40169300 |
| General Specifications | |
| Material | FFKM - FFPM |
| Hardness | 70 |
| Color | White |
| Approval | FDA - EC1935/2004 - USP Class VI - 3A Sanitary |
| Compound Number | F707W94 |
| CS (Cross Section) | 1.5 mm |
| Dimensions | 4.5x1.5 |
| ID (Inner diameter) | 4.5 mm |
| Seal type | O-ring |
| Other Specifications | |
| Alternative names | FFKM – FFPM |
| Chemical Name | Perfluoroelastomer |
| Description 2 | O-ring FFKM - FFPM 4.5x1.5 |
| Product name | O-ring 4.5x1.5 FFKM – FFPM | F707W94 | FDA - EC1935/2004 - USP Class VI - 3A Sanitary |
| Technical Specifications | |
| Compression Set | 24 % |
| Specific Gravity | 2,41 (±0,03) g/cm3 |
| Temperature Max | 270 ºC |
| Temperature Min | -20 ºC |
| Tensile Strength | 13 MPa |
| Ultimate Elongation | 130 % |
| attachment |  Material Datasheet |
| Also found under | |
| FFKM - FFPM O-rings | O-rings | |
