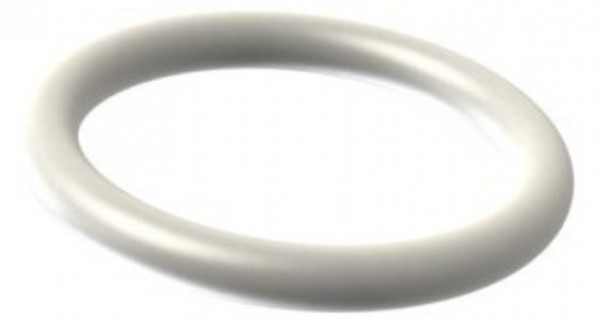

Name: O-ring 44.12x2.62 - FFKM - FFPM - F707W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 70 Shore A - White - ORS69999
Brand: Eurolast
SKU: 69999
Price: 100.86 EUR
Availability: OutOfStock

home navigate_next FFKM - FFPM O-Rings navigate_next FFKM O-Rings - 70 Shore A - F707W94 navigate_next O-ring 44.12x2.62 - FFKM - FFPM - F707W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 70 Shore A - White - ORS69999

ID (Inner diameter) 44.12 mm

CS (Cross Section) 2.62 mm

Material FFKM - FFPM

Hardness 70

Color White

Item no. ORS69999

Material FFKM - FFPM

Hardness 70

Color White

AS568 Size Chart AS568 132

Stock 0 sentiment_satisfied_alt

picture_as_pdf Material Datasheet

keyboard_arrow_down All specifications

€ 100,⁸⁶ Ex. VAT / per piece

€ 100,86 Incl. VAT

Price per piece

This product has a minimum order quantity of 1 pieces.

Receive a quote and delivery time

check Simplified online ordering

check Express worldwide delivery

check Large stock available

check Next day delivery

check Simplified online ordering

check Express worldwide delivery

check Large stock available

check Next day delivery

Quantity	Per piece
1+	€ 100,8600
10+	€ 90,8808
25+	€ 78,8994
50+	€ 68,9016
100+	€ 68,9016

Description

This FFKM - FFPM O-Ring has a diameter of 44.12x2.62 mm and is White in color. The hardness of this O-ring 44.12x2.62 - FFKM - FFPM - F707W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 70 Shore A - White - ORS69999 is 70. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by . The O-Ring is typically used in and has an operating temperature range from -20 ºC to 270 ºC. O-Rings 556095 are referred to as 69999 and have a DIN 3771 size of 44.12x2.62. This item is equivalent to and has an FDA - EC1935/2004 - USP Class VI - 3A Sanitary approval. The chemical name of this O-Ring is Perfluoroelastomer.

Specifications

Article number	69999
Alternative Sizes
AS568 Size Chart info	AS568 132
BS1806 Size Chart info	BS1806 132
DIN 3771 Size Chart info	44.12x2.62
Size in text	forty four comma twelve by two comma sixty two
SMS 1586 Size chart	44.12 x 2.62
Approximately equal to
Precision Polymer Engineering Perlast® Equivilent	PPE Perlast ® G74S
Export specifications
Country of Origin	IT
Customs Code info	40169300
General Specifications
Material	FFKM - FFPM
Hardness info	70
Color	White
Approval	FDA - EC1935/2004 - USP Class VI - 3A Sanitary
Compound Number	F707W94
CS (Cross Section) info	2.62 mm
Dimensions info	44.12x2.62
ID (Inner diameter) info	44.12 mm
Seal type	O-ring
Other Specifications
Alternative names	FFKM – FFPM
Chemical Name info	Perfluoroelastomer
Description 2	O-ring FFKM - FFPM 44.12x2.62
Product name	O-ring 44.12x2.62 FFKM – FFPM \| AS568 132 \| F707W94 \| FDA - EC1935/2004 - USP Class VI - 3A Sanitary
Technical Specifications
Compression Set info	24 %
Specific Gravity info	2,41 (±0,03) g/cm3
Temperature Max info	270 ºC
Temperature Min info	-20 ºC
Tensile Strength info	13 MPa
Ultimate Elongation info	130 %
attachment	Material Datasheet
Also found under
FFKM - FFPM O-rings \| O-rings

download Download/print specifications PDF
