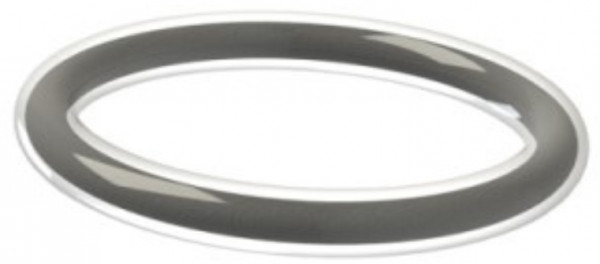

This FKM - FPM - Viton O-Ring has a diameter of 565x10 mm and is Black in color. The hardness of this O-ring 565x10 - FEP-FKM - FDA - ORS158642 is Shore A. Alternative names for the compound are Viton® - FKM, and it is commonly produced by Teflex FEP-O-SEAL®. The O-Ring is typically used in and has an operating temperature range from -20 ºC to 205 ºC. O-Rings 413351 are referred to as 158642 and have a DIN 3771 size of 565x10. This item is equivalent to and has an FDA approval. The chemical name of this O-Ring is Fluorocarbon Rubber.
| Article number | 158642 |
| Alternative Sizes | |
| DIN 3771 Size Chart | 565x10 |
| ISO 3601 Size Chart | 565x10 |
| Size in text | five hundred and sixty five zero by ten zero |
| SMS 1586 Size chart | 565x10 |
| Export specifications | |
| Country of Origin | UK |
| Customs Code | 39269097 |
| General Specifications | |
| Material | FKM - FPM - Viton |
| Color | Black |
| Approval | FDA |
| Compound Number | 319913601 |
| CS (Cross Section) | 10 mm |
| Dimensions | 565x10 |
| ID (Inner diameter) | 565 mm |
| Seal type | O-ring |
| Tolerance (CS) DIN 7715-M2F | ± 0,30 |
| Tolerance (ID) DIN 7715-M2F | ± 5,065 |
| Other Specifications | |
| Alternative names | Viton® - FKM |
| Chemical Name | Fluorocarbon Rubber |
| Description 2 | O-ring FKM - FPM - Viton 565x10 |
| Product name | O-ring 565x10 FKM - FPM - Viton |
| Trade names | Teflex FEP-O-SEAL® |
| Technical Specifications | |
| Temperature Max | 205 ºC |
| Temperature Min | -20 ºC |
| Also found under | |
| FEP Encapsulated O-Rings | O-ring materials | |
