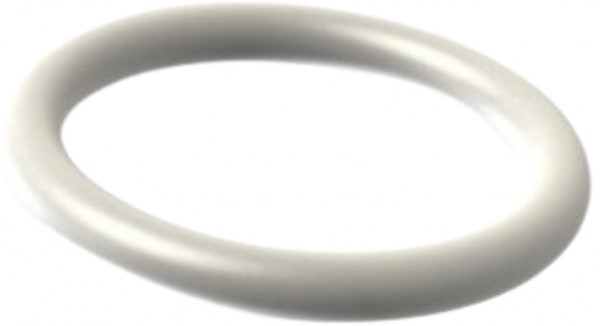

O-ring 6.14x1.78 - FFKM - FFPM - F808W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 80 Shore A - White - ORS232810

ID (Inner diameter) 6.14 mm
CS (Cross Section) 1.78 mm
Material FFKM - FFPM
Hardness 80 Shore A
Color White
Item no. 232810
Material FFKM - FFPM
Hardness 80 Shore A
Color White
AS568 Size Chart
Stock 0 sentiment_satisfied_alt
Need a coating for this O-Ring? Request a quotation here keyboard_arrow_down All specifications
€ 24,52 Ex. VAT / per piece
€ 24,52 Incl. VAT
Price per piece
This product has a minimum order quantity of 1 pieces.

Receive a quote and delivery time

iDeal
paypal
creditCard
Sofort
Billink
check Simplified online ordering
check Express worldwide delivery
check Large stock available
check Next day delivery
check Simplified online ordering
check Express worldwide delivery
check Large stock available
check Next day delivery
Quantity Per piece
1+ € 24,5200
50+ € 24,5200
100+ € 23,1600
250+ € 20,2800
500+ € 24,1500
1000+ € 22,6000
2500+ € 19,0000
5000+ € 16,7000
Description

This FFKM - FFPM O-Ring has a diameter of  mm and is White in color. The hardness of this O-ring 6.14x1.78 - FFKM - FFPM - F808W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 80 Shore A - White - ORS232810 is 80 Shore A. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by . The O-Ring is typically used in and has an operating temperature range from -20 ºC to 270 ºC. O-Rings 929953 are referred to as 232810 and have a DIN 3771 size of . This item is equivalent to and has an FDA - EC1935/2004 - USP Class VI - 3A Sanitary approval. The chemical name of this O-Ring is Perfluoroelastomer.

Article number 232810
Approximately equal to
Greene Tweed Chemraz® EquivalentGreene Tweed Chemraz ® SD517 & 513-529
Export specifications
Country of OriginIT
Customs Code info 40169300
General Specifications
MaterialFFKM - FFPM
Hardness info 80 Shore A
ColorWhite
ApprovalFDA - EC1935/2004 - USP Class VI - 3A Sanitary
Compound NumberF808W94
CS (Cross Section) info 1.78 mm
Dimensions info 6.14x1.78
ID (Inner diameter) info 6.14 mm
Seal typeO-ring
Other Specifications
Alternative namesFFKM – FFPM
Chemical Name info Perfluoroelastomer
Product nameO-ring 6.14x1.78 FFKM – FFPM | F808W94 | FDA - EC1935/2004 - USP Class VI - 3A Sanitary
Technical Specifications
Compression Set info 26 %
Specific Gravity info 2,43 (±0,03) g/cm3
Temperature Max info 270 ºC
Temperature Min info -20 ºC
Tensile Strength info 13,5 MPa
Ultimate Elongation info 105 %
