O-ring 11.9x2.6 - FFKM - FFPM - FDA - EC1935/2004 - USP Class VI - 70 Shore A - White - Kalrez® 6880 - ORS216336 (Equivilent) Online Shop - Worldwide shipping
check 430.000.000+ O-rings in stock
check Fast delivery

check Fast delivery

check 430.000.000+ O-rings in stock

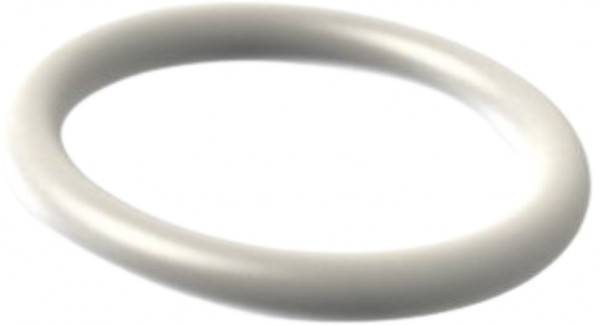

O-ring 11.9x2.6 - FFKM - FFPM - F707W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 70 Shore A - White - ORS216336

ID (Inner diameter) 11.9 mm
CS (Cross Section) 2.6 mm
Material FFKM - FFPM
Hardness 70
Color White
Item no. ORS216336
Material FFKM - FFPM
Hardness 70
Color White
O-ring Code
Stock 319 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Stock Delivery time
319 Shipping in 5-7 days
€ 41,12 Ex. VAT / per piece
€ 41,12 Incl. VAT
Price per piece
Shipping in 5-7 days
This product has a minimum order quantity of 1 pieces.
iDeal
paypal
creditCard
Sofort
Billink
check 25+ years of experience in seals
check 180,000+ unique O-rings available
check Technical advice from specialists
check Worldwide delivery
check 25+ years of experience in seals
check 180,000+ unique O-rings available
check Technical advice from specialists
check Worldwide delivery
Quantity Per piece
1+ € 41,1200
50+ € 41,1200
100+ € 38,7600
250+ € 35,4800
500+ € 32,0200
1000+ € 30,3000
2500+ € 27,1600
5000+ € 22,4600
Description

This FFKM - FFPM O-Ring has a diameter of 11.9x2.6 mm and is White in color. The hardness of this O-ring 11.9x2.6 - FFKM - FFPM - F707W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 70 Shore A - White - ORS216336 is 70. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by Kalrez® | Simriz® | Chemraz® | Perlast® | Isolast® | Parofluor®. The O-Ring is typically used in and has an operating temperature range from -20 ºC to 250 ºC. O-Rings 554705 are referred to as 216336 and have a DIN 3771 size of 11.9x2.6. This item is equivalent to and has an FDA - EC1935/2004 - USP Class VI - 3A Sanitary approval. The chemical name of this O-Ring is Perfluorcarbonrubber / Perfluoroelastomeer.

In stock Yes, 319 pcs
Article number 216336
General Specifications
Seal typeO-ring
ID (Inner diameter) info 11.9 mm
CS (Cross Section) info 2.6 mm
Dimensions info 11.9x2.6
MaterialFFKM - FFPM
ApprovalFDA - EC1935/2004 - USP Class VI - 3A Sanitary
Hardness info 70
ColorWhite
Compound NumberF707W94
Alternative Sizes
DIN 3771 Size Chart info 11.9x2.6
SMS 1586 Size chart11.9 x 2.6
Size in texteleven point nine millimeters by two point six millimeters
Export specifications
Country of OriginIT
Customs Code40169300
Technical Specifications
Temperature Max info 250 ºC
Temperature Min info -20 ºC
Specific Gravity info 2,41 (±0,03) g/cm3
Compression Set info 24 %
Tensile Strength info 13 MPa
Ultimate Elongation info 130 %
Other Specifications
Alternative namesFFKM – FFPM
Chemical Name info Perfluorcarbonrubber / Perfluoroelastomeer
Description 2O-ring FFKM - FFPM 11.9x2.6
Product nameO-ring 11.9x2.6 FFKM – FFPM | F707W94 | FDA - EC1935/2004 - USP Class VI - 3A Sanitary
Trade namesKalrez® | Simriz® | Chemraz® | Perlast® | Isolast® | Parofluor®
Approximately equal to
Precision Polymer Engineering Perlast® EquivilentPPE Perlast ® G74S
Also found under
FFKM - FFPM O-rings | O-rings
