O-ring 12x1 - FFKM - FFPM - F707W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 70 Shore A - White - ORS216340

ID (Inner diameter) 12 mm
CS (Cross Section) 1 mm
Material FFKM - FFPM
Hardness 70
Color White
Item no. ORS216340
Material FFKM - FFPM
Hardness 70
Color White
O-ring Code SS120
Stock 79 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Stock Delivery time
3 Ordered before Friday 12:00, shipped the same day
76 Shipping in 5-7 days
€ 22,24 Ex. VAT / per piece
€ 22,24 Incl. VAT
Price per piece
Ordered before Friday 12:00, shipped the same day
This product has a minimum order quantity of 1 pieces.
iDeal
paypal
creditCard
Sofort
Billink
check 25+ years of experience in seals
check 180,000+ unique O-rings available
check Technical advice from specialists
check Worldwide delivery
check 25+ years of experience in seals
check 180,000+ unique O-rings available
check Technical advice from specialists
check Worldwide delivery
Quantity Per piece
1+ € 22,2400
50+ € 22,2400
100+ € 20,7800
250+ € 22,7750
500+ € 21,6000
1000+ € 20,4250
2500+ € 17,2250
5000+ € 15,0750
Description

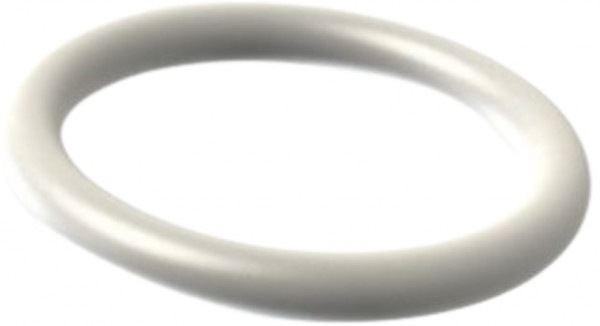

This FFKM - FFPM O-Ring has a diameter of 12x1 mm and is White in color. The hardness of this O-ring 12x1 - FFKM - FFPM - F707W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 70 Shore A - White - ORS216340 is 70. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by Kalrez® | Simriz® | Chemraz® | Perlast® | Isolast® | Parofluor®. The O-Ring is typically used in and has an operating temperature range from -20 ºC to 250 ºC. O-Rings 554711 are referred to as 216340 and have a DIN 3771 size of 12x1. This item is equivalent to and has an FDA - EC1935/2004 - USP Class VI - 3A Sanitary approval. The chemical name of this O-Ring is Perfluorcarbonrubber / Perfluoroelastomeer.

In stock Yes, 79 pcs
Article number 216340
General Specifications
Seal typeO-ring
ID (Inner diameter) info 12 mm
CS (Cross Section) info 1 mm
Dimensions info 12x1
MaterialFFKM - FFPM
ApprovalFDA - EC1935/2004 - USP Class VI - 3A Sanitary
Hardness info 70
ColorWhite
Compound NumberF707W94
O-ring CodeSS120
Alternative Sizes
JIS B 2401 Size ChartJIS B 2401 SS120
DIN 3771 Size Chart info 12x1
SMS 1586 Size chart12 x 1
Size in texttwelve millimeters by one millimeter
Export specifications
Country of OriginIT
Customs Code40169300
Technical Specifications
Temperature Max info 250 ºC
Temperature Min info -20 ºC
Specific Gravity info 2,41 (±0,03) g/cm3
Compression Set info 24 %
Tensile Strength info 13 MPa
Ultimate Elongation info 130 %
Other Specifications
Alternative namesFFKM – FFPM
Chemical Name info Perfluorcarbonrubber / Perfluoroelastomeer
Description 2O-ring FFKM - FFPM 12x1
Product nameO-ring 12x1 FFKM – FFPM | F707W94 | FDA - EC1935/2004 - USP Class VI - 3A Sanitary
Trade namesKalrez® | Simriz® | Chemraz® | Perlast® | Isolast® | Parofluor®
Approximately equal to
Precision Polymer Engineering Perlast® EquivilentPPE Perlast ® G74S
