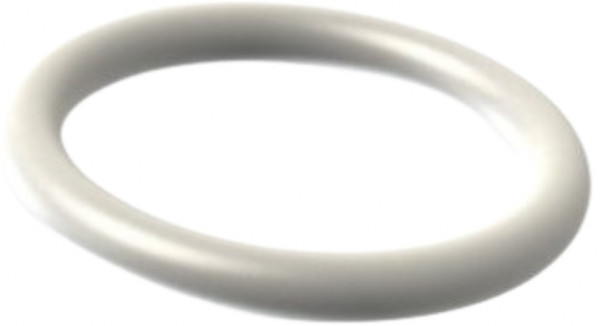

O-ring 13.92x1.78 - FFKM - FFPM - F808W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 80 Shore A - White - ORS232822

ID (Inner diameter) 13.92 mm
CS (Cross Section) 1.78 mm
Material FFKM - FFPM
Hardness 80
Color White
Item no. ORS232822
Material FFKM - FFPM
Hardness 80
Color White
O-ring Code
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
€ 36,10 Ex. VAT / per piece
€ 43,68 Incl. VAT
Price per piece
On a quotation basis
This product has a minimum order quantity of 1 pieces.

Receive a quote and delivery time

iDeal
paypal
creditCard
Sofort
Billink
check 25+ years of experience in seals
check 180,000+ unique O-rings available
check Technical advice from specialists
check Worldwide delivery
check 25+ years of experience in seals
check 180,000+ unique O-rings available
check Technical advice from specialists
check Worldwide delivery
Quantity Per piece
1+ € 36,0992
50+ € 36,1000
100+ € 33,7800
250+ € 31,3400
500+ € 27,9600
1000+ € 26,5800
2500+ € 24,1600
5000+ € 20,0800
Description

This FFKM - FFPM O-Ring has a diameter of  mm and is White in color. The hardness of this O-ring 13.92x1.78 - FFKM - FFPM - F808W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 80 Shore A - White - ORS232822 is 80. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by Kalrez® | Simriz® | Chemraz® | Perlast® | Isolast® | Parofluor®. The O-Ring is typically used in and has an operating temperature range from -20 ºC to 250 ºC. O-Rings 931502 are referred to as 232822 and have a DIN 3771 size of . This item is equivalent to and has an FDA - EC1935/2004 - USP Class VI - 3A Sanitary approval. The chemical name of this O-Ring is Perfluorcarbonrubber / Perfluoroelastomeer.

Article number 232822
General Specifications
Seal typeO-ring
ID (Inner diameter) info 13.92 mm
CS (Cross Section) info 1.78 mm
Dimensions info 13.92x1.78
MaterialFFKM - FFPM
ApprovalFDA - EC1935/2004 - USP Class VI - 3A Sanitary
Hardness info 80
ColorWhite
Compound NumberF808W94
Alternative Sizes
Size in textthirteen point ninety-two millimeters by one point seventy-eight millimeters
Export specifications
Country of OriginIT
Customs Code40169300
Technical Specifications
Temperature Max info 250 ºC
Temperature Min info -20 ºC
Specific Gravity info 2,43 (±0,03) g/cm3
Compression Set info 26 %
Tensile Strength info 13,5 MPa
Ultimate Elongation info 105 %
Other Specifications
Alternative namesFFKM – FFPM
Chemical Name info Perfluorcarbonrubber / Perfluoroelastomeer
Product nameO-ring 13.92x1.78 FFKM – FFPM | F808W94 | FDA - EC1935/2004 - USP Class VI - 3A Sanitary
Trade namesKalrez® | Simriz® | Chemraz® | Perlast® | Isolast® | Parofluor®
Approximately equal to
Greene Tweed Chemraz® EquivalentGreene Tweed Chemraz ® SD517 & 513-529
Also found under
FFKM - FFPM O-rings | O-rings
