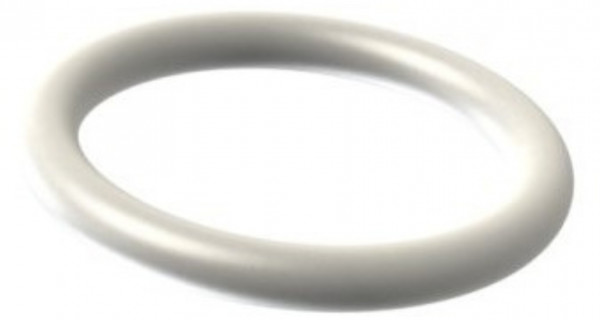

O-ring 608.08x7 - FFKM - FFPM - F707W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 70 Shore A - White - ORS179232

ID (Inner diameter) 608.08 mm
CS (Cross Section) 7 mm
Material FFKM - FFPM
Hardness 70
Color White
Item no. ORS179232
Material FFKM - FFPM
Hardness 70
Color White
O-ring Code
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
€ 3.382,87 Ex. VAT / per piece
€ 3.382,87 Incl. VAT
Price per piece
On a quotation basis
This product has a minimum order quantity of 1 pieces.

Receive a quote and delivery time

iDeal
paypal
creditCard
Sofort
Billink
check 25+ years of experience in seals
check 180,000+ unique O-rings available
check Technical advice from specialists
check Worldwide delivery
check 25+ years of experience in seals
check 180,000+ unique O-rings available
check Technical advice from specialists
check Worldwide delivery
Description

This FFKM - FFPM O-Ring has a diameter of 608.08x7 mm and is White in color. The hardness of this O-ring 608.08x7 - FFKM - FFPM - F707W94 - FDA - EC1935/2004 - USP Class VI - 3A Sanitary - 70 Shore A - White - ORS179232 is 70. Alternative names for the compound are FFKM – FFPM, and it is commonly produced by Kalrez® | Simriz® | Chemraz® | Perlast® | Isolast® | Parofluor®. The O-Ring is typically used in and has an operating temperature range from -20 ºC to 250 ºC. O-Rings 560208 are referred to as 179232 and have a DIN 3771 size of 608.08x7. This item is equivalent to and has an FDA - EC1935/2004 - USP Class VI - 3A Sanitary approval. The chemical name of this O-Ring is Perfluorcarbonrubber / Perfluoroelastomeer.

Article number 179232
General Specifications
Seal typeO-ring
ID (Inner diameter) info 608.08 mm
CS (Cross Section) info 7 mm
Dimensions info 608.08x7
MaterialFFKM - FFPM
ApprovalFDA - EC1935/2004 - USP Class VI - 3A Sanitary
Hardness info 70
ColorWhite
Compound NumberF707W94
Alternative Sizes
DIN 3771 Size Chart info 608.08x7
SMS 1586 Size chart608.08 x 7
Size in textsix hundred and eight point zero eight millimeters by seven millimeters
Export specifications
Country of OriginIT
Customs Code40169300
Technical Specifications
Temperature Max info 250 ºC
Temperature Min info -20 ºC
Specific Gravity info 2,41 (±0,03) g/cm3
Compression Set info 24 %
Tensile Strength info 13 MPa
Ultimate Elongation info 130 %
Other Specifications
Alternative namesFFKM – FFPM
Chemical Name info Perfluorcarbonrubber / Perfluoroelastomeer
Description 2O-ring FFKM - FFPM 608.08x7
Product nameO-ring 608.08x7 FFKM – FFPM | F707W94 | FDA - EC1935/2004 - USP Class VI - 3A Sanitary
Trade namesKalrez® | Simriz® | Chemraz® | Perlast® | Isolast® | Parofluor®
Approximately equal to
Precision Polymer Engineering Perlast® EquivilentPPE Perlast ® G74S
attachmentpdf Material Datasheet
