| Stock | Delivery time |
|---|---|
| 90 | On workingdays before 12:00 ordered, shipped the same day |
| 897 | Shipped in 5 - 7 - Day(s) |
| Quantity | Per piece |
|---|---|
| 1+ | € 13,7500 |
| 10+ | € 12,2807 |
| 25+ | € 11,6437 |
| 50+ | € 10,4210 |
| 100+ | € 9,8340 |
| 250+ | € 9,1985 |
| 500+ | € 7,9742 |
| 1000+ | € 6,8000 |

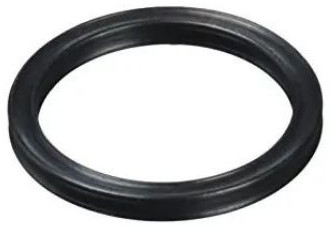

This X-ring 164.47x6.99 - NBR - Nitrile - 70 Shore A - Black - ORS193221 offers excellent resistance to mineral oils, greases, hydraulic fluids, and fuels, making it suitable for various dynamic industrial applications.
Manufactured from NBR (nitrile butadiene rubber), also known as Nitrile rubber, with a hardness of 70 Shore A, this NBR X-ring, with an inner diameter (ID) of 164,47mm and a cross-section (CS) of 6,99mm, provides excellent resistance to oils, greases, and fuels. This makes the material suitable for dynamic applications in the general, hydraulic, and pneumatic industries.
✅ Excellent resistance to oils, greases, and mineral oils
✅ Temperature resistant from -30°C to +135°C
✅ Resistant to aliphatic hydrocarbons and hydraulic oils H, H-L, H-LP
✅ Suitable for dynamic applications – The X-ring prevents twisting in dynamic applications.
✅ Improved sealing efficiency – Thanks to its four sealing lips, the X-ring ensures lower friction compared to an O-ring.
This X-ring 164.47x6.99 NBR 70 Shore A is ideal for dynamic applications in the general, hydraulic, and pneumatic industries.It is widely used in rotating and oscillating applications, hydraulic pumps and motors, valves, and actuators due to its excellent resistance to oils and greases.
You can easily order this X-ring 164.47x6.99 - NBR - Nitrile - 70 Shore A - Black - ORS193221 online from our webshop O-ring-stocks.eu.
This NBR - Nitrile O-Ring has a diameter of 164.47x6.99 mm and is Black in color. The hardness of this X-ring 164.47x6.99 - NBR - Nitrile - 70 Shore A - Black - ORS193221 is 70 Shore A. Alternative names for the compound are Nitrile Rubber - NBR, and it is commonly produced by . The O-Ring is typically used in and has an operating temperature range from -30 ºC to 135 ºC. O-Rings 135180 are referred to as 193221 and have a DIN 3771 size of 164.47x6.99. This item is equivalent to and has an approval. The chemical name of this O-Ring is Acrylonitrile butadiene rubber.
| In stock | Yes, 987 pcs |
| Article number | 193221 |
| Additional number | 135180 |
| Minimum Purchase | 4 |
| Alternative Sizes | |
| DIN 3771 Size Chart | 164.47x6.99 |
| SMS 1586 Size chart | 164.47 X 6.99 |
| Export specifications | |
| Country of Origin | VN |
| Customs Code | 40169300 |
| General Specifications | |
| Color | Black |
| Hardness | 70 Shore A |
| Material | NBR - Nitrile |
| CS (Cross Section) | 6.99 mm |
| Dimensions | 164.47x6.99 |
| ID (Inner diameter) | 164.47 mm |
| Seal type | X-ring |
| Other Specifications | |
| Alternative names | Nitrile Rubber - NBR |
| Chemical Name | Acrylonitrile butadiene rubber |
| Description 2 | X-ring NBR - Nitrile 164.47x6.99 |
| Product name | X-ring 164.47x6.99 NBR - Nitrile |
| Technische Specificaties | |
| Temperature Max | 135 ºC |
| Temperature Min | -30 ºC |
| Also found under | |
| X-Rings | |
